Quality Zone LLC

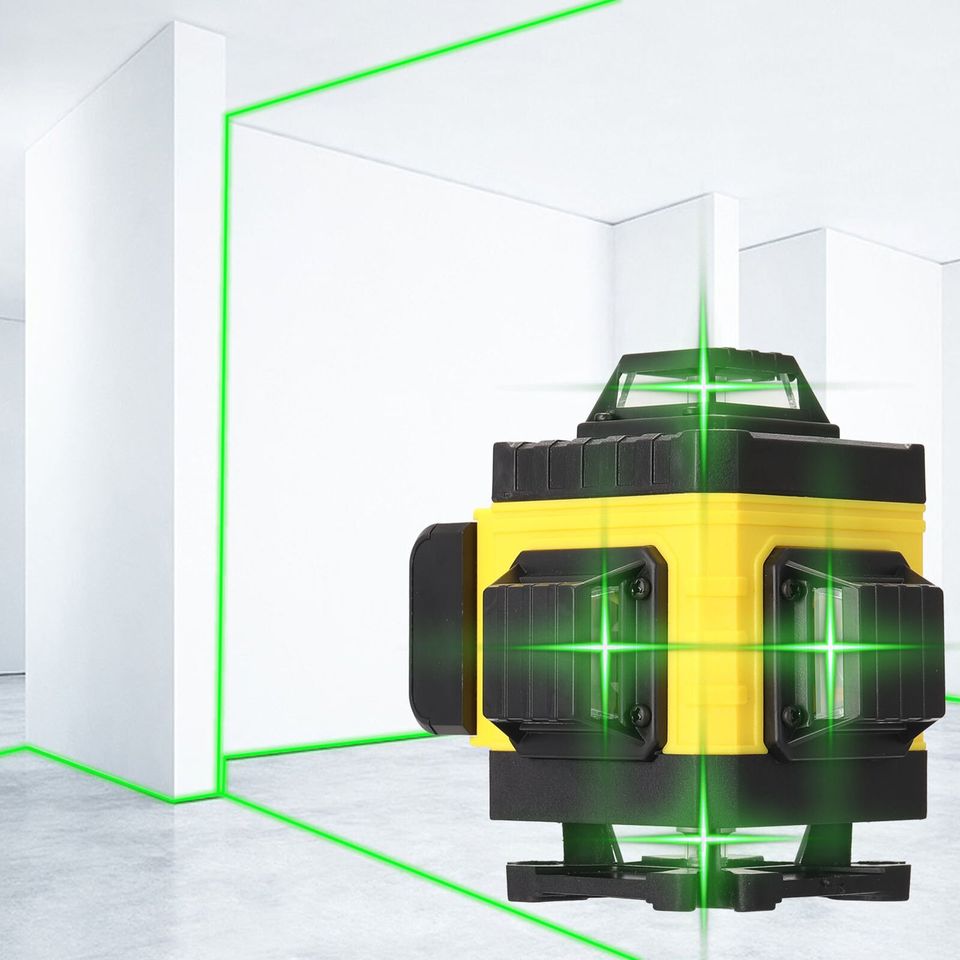

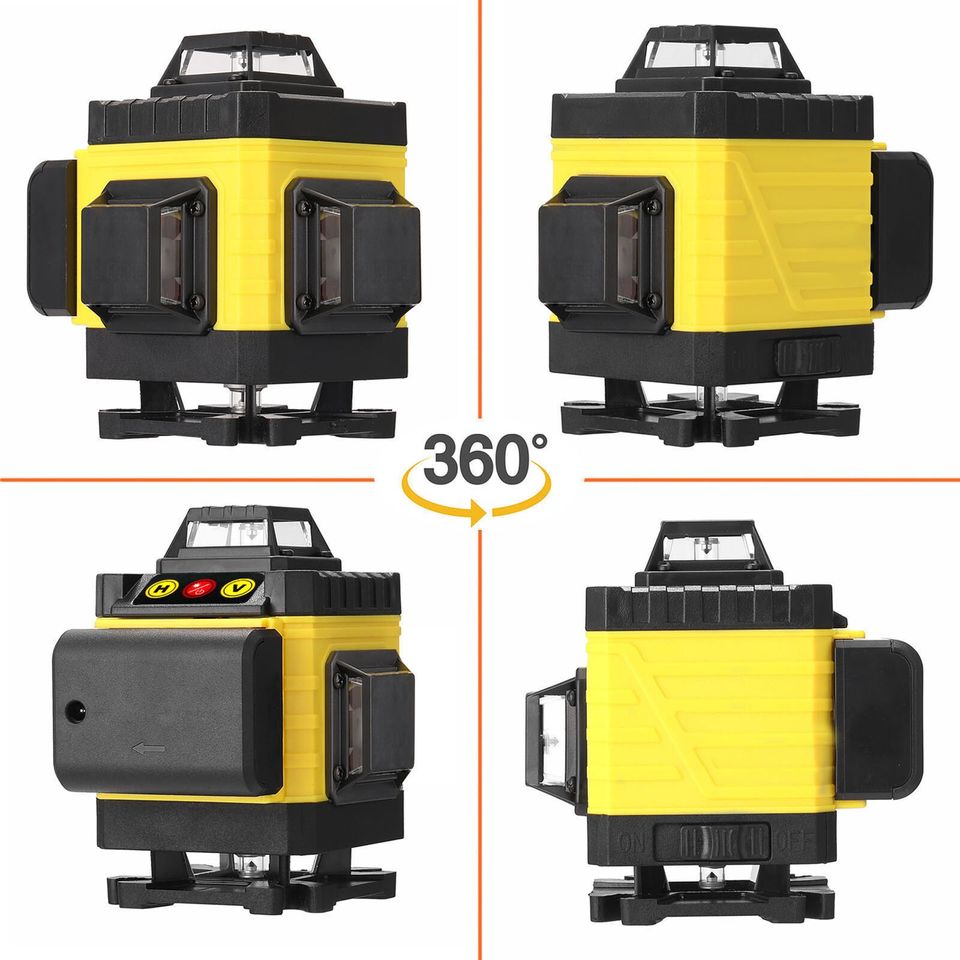

4D 16 Lines Green Laser Level Self Leveling 360° Cross Line Measure Tool M1B3

Regular price
$79.00
Regular price
$115.00
Sale price
$79.00
Shipping calculated at checkout.
Features:
-Compact size, lightweight and portable, easy to carry with the case, providing quick and convenient mobility and storage.

-Output 16 laser lines separately or simultaneously for finer positioning, with 3° self-leveling system, flexibility and stability.

-Adopts optical glass, fine transmission, with clear laser light.

-Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and also has beep sound to reminding you to reset them on a flat ground.

-Push button design, push left to open it, push right to close it.

-Touching buttons design, horizontal line and vertical line with a clearly division.

-The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.

-The T-shape bracket with 7mm wall mounted distance, which has 360° rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target(1/4" screw size).

-Comes with one tripod base with 360° rotatable design, male and female 5/8" thread, for easy to connected with 5/8" laser level and 5/8" bracket.
1/4" to 5/8" thread adapter for easy connection, it can be used with 5/8" thread tripod to adjust the working height of the machine.

-The laser level lift bracket, height adjustable, anti-slip texture design for increasing friction, more stable placement.

-Equipped with window clip holder for works with wall-mounted bracket.
Waterproof and dustproof, suitable for both indoor and outdoor use, continuous laser pulsed laser.

Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 1200mAh (included, you will find there are two batteries inside if disassemble one)
Laser ray: 360 * 4, 16 lines
Laser wavelength: green light 520nm
Laser lines accuracy: ±0.2mm/10m
Self-levelling-range: ±3°
Working distance: 25m
Working temperature: -5℃ to 50℃
Item size:
Level machine: 103 * 106 * 133mm / 4.06 * 4.17 * 5.24in
Battery size: 74 * 53 * 30mm / 2.91 * 2.09 * 1.18in
Base size: 96 * 82 * 73mm / 3.78 * 3.23 * 2.87in
Wall-mounted bracket size: 160 * 87 * 72mm / 6.30 * 3.43 * 2.83in
Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in
Lifting platform size: 111 * 92 * 33mm / 4.37 * 3.62 * 1.30in
Carrying bag: 233 * 213 * 152mm / 9.17 * 8.39 * 5.98in
Item weight: 1494g / 3.29lb
Package size: 250 * 220 * 160mm / 9.84 * 8.66 * 6.30in
Package weight: 1659g / 3.66lb

Packing List:
1 * Level Machine
2 * Battery
1 * Tripod Base
1 * Wall-mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * 1/4inch to 5/8inch Adapter
1 * Clip Holder
1 * Power Adapter (EU/UK/US-Plug Optional)
1 * Carrying Bag
1 * Guideline
